Features:

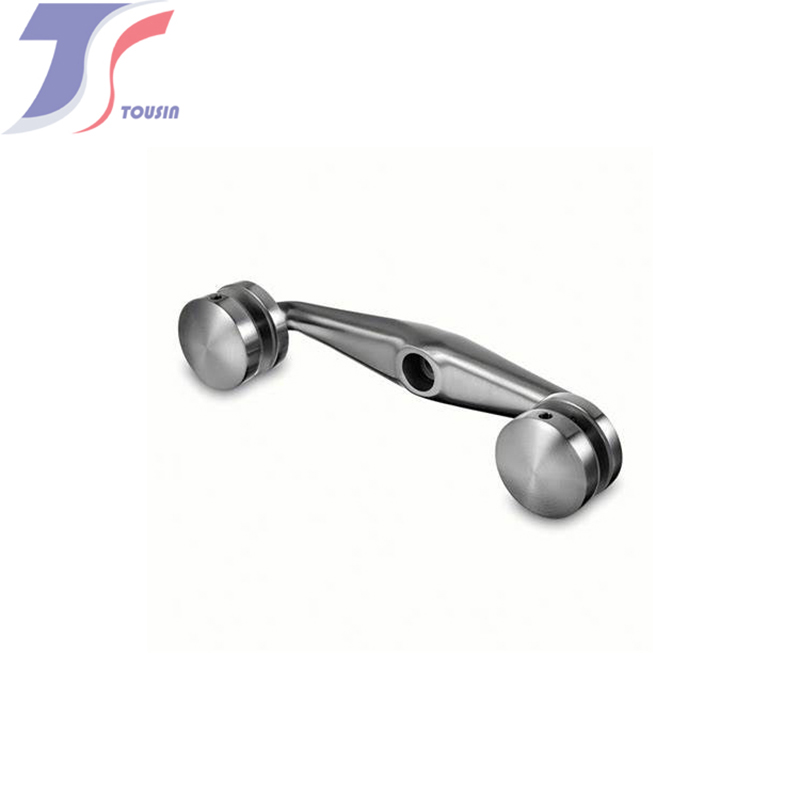

Stainless steel glass clamp, glass clamp, glass clip.

Material: Stainless steel Duplex 2205/SS316/SS316L and more

Process: Investment casting, machining, handcraft polishing (mirror or satin polishing)

Size: As customer’s requirement

Need or no need holes in glass

Special design available, make any type as per your drawings or sample

Our products includes constrution hardware, balustrade hardware, marine hardware, machining parts, impeller, ball valve, screw fittings and so on

If you are interested in our products, please contact with us, we will try our best to meet Your demand.

Glass Routel Fittings: A Complete Guide to Point-Supported Architectural Glass Hardware (2000+ Words)

Glass façades have become one of the most recognizable features of modern architecture. They create transparency, natural lighting, and a clean minimalist look that enhances commercial buildings, shopping malls, hotels, airports, and iconic architectural spaces. To safely and elegantly secure large glass panels, Glass Routel Fittings play an essential structural role.

As a critical component of point-supported glass systems, glass routels connect the glass panel directly to the supporting structure—often through spider fittings—ensuring stability, load-bearing capacity, and flexibility. This comprehensive guide explores everything you need to know about Glass Routel Fittings, including their structure, materials, advantages, applications, installation, and selection criteria.

1. What Are Glass Routel Fittings?

Glass Routel Fittings—also called spider routels, glass bolts, or routel connectors—are mechanical fasteners designed to attach glass panels to spider arms or supporting frames in point-supported glass systems.

Their main functions include:

• Securely connecting glass to spider fittings

• Absorbing loads from wind pressure, structural movement, and glass weight

• Allowing flexible adjustment for installation tolerances

• Maintaining the clean, frameless look of modern architecture

A routel fitting typically consists of multiple components engineered for strength, durability, and alignment accuracy.

2. Structure of Glass Routel Fittings

A complete routel system often includes the following elements:

1. Routel Body (Main Bolt)

The core component that fastens the glass panel to the spider arm. Typically made of stainless steel.

2. Washer & Spacer Set

Located between glass panels to distribute pressure and prevent cracking.

3. Cover Cap

Used to conceal screws for a clean appearance.

4. Rubber Gasket

Creates cushioning and prevents stress concentration on the glass.

5. Ball Joint (Optional)

Allows angle adjustment in multi-directional settings.

6. Sleeve or Bushing

Used for full-through or half-through glass holes for enhanced stability.

These components work together to provide a secure and visually appealing connection.

3. Types of Glass Routel Fittings

Depending on the installation design and glass structure, routel fittings are available in multiple styles:

1. Full-Through Routel (Through Bolt Type)

• Passes completely through the glass

• Requires a fully drilled hole

• Provides maximum load-bearing strength

• Common in large curtain wall systems

2. Half-Through Routel (Sleeve Type)

• Mounted with partially drilled holes

• Offers a cleaner appearance

• Suitable for thinner glass panels

3. Adjustable Routel

• Allows minor directional adjustments

• Used for uneven surfaces or complex geometries

4. Wall-Mounted Routel

• Connects glass directly to walls or steel structures

• Ideal for partitions and interior glazing

5. Corner Routel

• Designed for angled or multi-directional glass joints

Each type serves different structural and aesthetic needs.

4. Materials Used for Glass Routel Fittings

Routel fittings must withstand weather, corrosion, and mechanical stress. Common materials include:

1. Stainless Steel 304

• Cost-effective

• Suitable for indoor or mild outdoor environments

2. Stainless Steel 316 / 316L

• Best resistance to corrosion

• Ideal for seaside, industrial, or high-humidity areas

• Preferred for premium architectural projects

3. Surface Finishes

To enhance durability and appearance:

• Mirror polished

• Satin brushed

• Matte finish

• Electroplated finish

These finishes complement modern architectural styles and improve lifespan.

5. Advantages of Glass Routel Fittings

Glass routels are essential in high-end architectural glass systems for the following reasons:

1. High Structural Safety

Stainless steel routels offer exceptional tensile strength and reliability, ensuring that glass remains stable under heavy loads.

2. Minimalist and Modern Appearance

They enable a fully frameless glass façade, creating a sleek and transparent visual effect.

3. Flexibility and Adjustability

Ball-joint routels allow precise installation even when systems are slightly misaligned.

4. Excellent Weather Resistance

316 stainless steel routels resist rust, UV exposure, and temperature fluctuations.

5. Easy Maintenance and Long Service Life

Routel fittings rarely require replacement and are easy to clean and inspect.

6. Perfect for Large Glass Panels

They allow architects to create visually striking glass structures with broad viewing surfaces.

6. Applications of Glass Routel Fittings

Glass routel fittings are used across a wide range of architectural projects:

1. Glass Curtain Walls

The most common application, including skyscrapers, malls, and commercial complexes.

2. Glass Canopies

Provide support for overhead glass roofs at entrances and storefronts.

3. Skylights & Atriums

Ideal for large daylight systems that require clear and strong glass support.

4. Interior Glass Partitions

Used for advanced office designs and high-end interiors.

5. Glass Balustrades

Provides frameless safety barriers on stairs, terraces, and balconies.

6. Glass Bridges & Walkways

Structural routels support laminated and tempered glass in modern pedestrian bridges.

7. Exhibition Halls & Airports

Large-span glazed structures often rely on routel systems for flexibility and safety.

7. How to Select the Right Glass Routel Fittings

1. Check Glass Thickness

Common application ranges include:

• 8–12 mm tempered glass

• 12–19 mm laminated glass

• 20+ mm specialty glass

Thicker glass requires stronger routels.

2. Consider Load and Structural Requirements

Key factors:

• Wind load

• Snow load (for overhead glass)

• Panel size

• Support spacing

3. Match the Spider Fitting System

Routels must match:

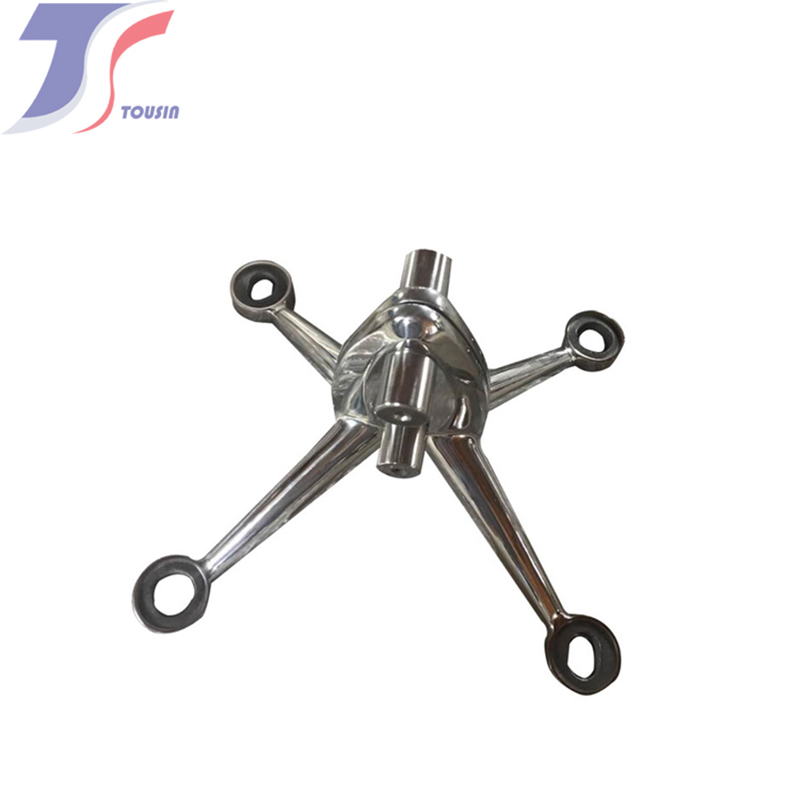

• One-arm, two-arm, three-arm, or four-arm spider fittings

• Vertical or horizontal installation layout

• Supporting structure type (steel beam, cable net, etc.)

4. Choose the Right Material (304 vs 316)

• 304: indoor or mild climates

• 316/316L: outdoor, coastal, high-end commercial projects

5. Surface Finish Selection

Mirror finish for high-end lobbies
Brushed finish for industrial or modern minimalist designs

8. Installation Guide for Glass Routel Fittings

Step 1: Glass Preparation

Glass must be drilled accurately based on routel specifications.

Step 2: Install Spider Fittings or Base Frame

Ensure proper alignment using laser measuring tools.

Step 3: Fix the Routel Base

Tighten base bolts to the spider arm or supporting structure.

Step 4: Mount the Glass Panel

Place the glass into position and secure using the routel components.

Step 5: Adjust Angle and Tightness

Fine-tune using the ball joint or adjustable sections.

Step 6: Final Fixing

Tighten bolts to manufacturer torque specifications.

Step 7: Inspection

Check:

• Stress distribution

• Bolt tightness

• Gasket positioning

• Overall alignment

Proper installation ensures long-term safety and performance.

9. Maintenance and Safety Tips

• Inspect bolt tightness every 6–12 months

• Clean stainless steel surfaces with neutral cleaners

• Avoid acidic chemicals that may cause corrosion

• Check glass for chips or cracks

• Lubricate ball joints periodically

• Replace worn gaskets immediately

Regular maintenance improves durability and safety.

10. Market Trends and Value of Glass Routel Fittings

As architectural design shifts toward transparency and open spaces, the demand for point-supported glass systems continues to rise. Glass routel fittings offer:

• Higher building aesthetics

• Better natural lighting

• Improved structural flexibility

• Stronger market value for commercial projects

They remain an essential component in modern architectural hardwar
